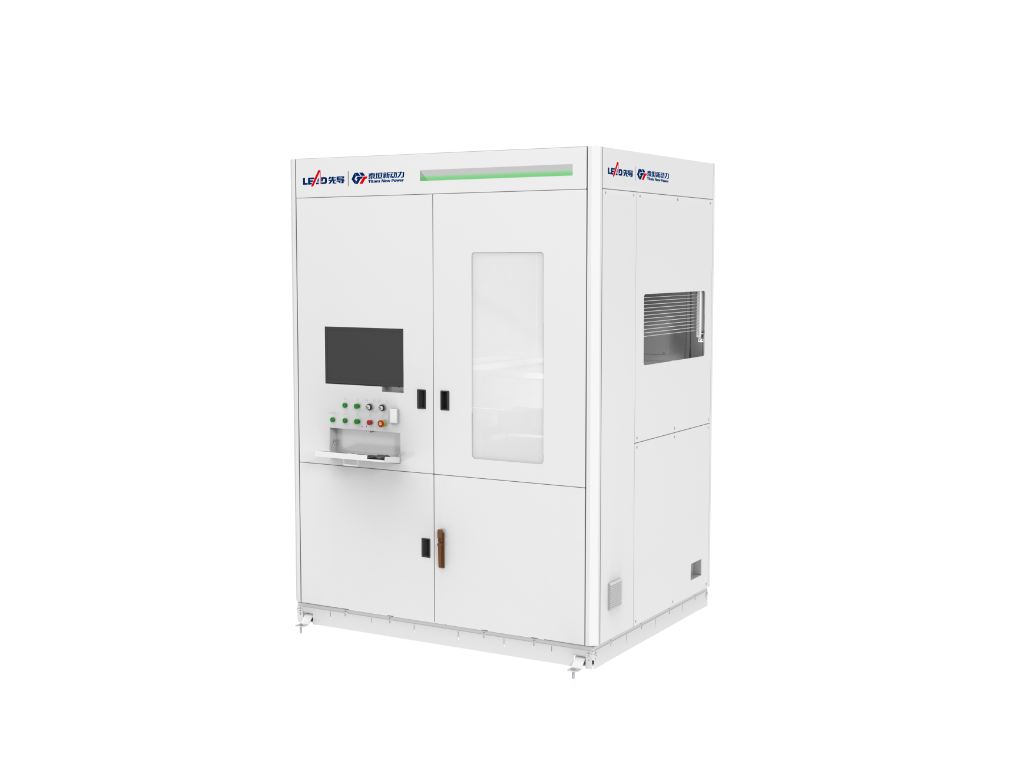

• Whole tray/ flying probe test
• Automatic calculate K value and equipped with MES interface
• Fully automatic calibration tooling, ensuring test accuracy of voltage and internal resistance
• Wide compatibility range, modularized & flexible design, easy to changeover
• Unique wiring anti-interference design
Items | Parameters |
Machine Capacity | ≥16PPM |
Voltage Testing Accuracy | a)Voltage range:DC 0~10000mV b)Test accuracy:±0.0020%rdg.±12µm c)Prismatic cell voltage testing accuracy:± 0.1mV |
Internal Resistance Testing Accuracy | a)Range of internal resistance:0µΩ~3KΩ b)Testing accuracy:±(0.5%rdg.+10dgt.) c)Testing frequency:1KHz±0.2Hz d)Repeated testing accuracy of internal resistance of Prismatic cell:±0.006mΩ |
